About
TMC-1230 PERFLUORO(2-METHYL-3-PENTANONE) has an excellent environmental profile. It doesn’t have damage to the ozone layer, and the ODP is 0, the GWP is 1, the ALT is 0.014 year. Although the ODP of fluoroalkane halon substitute products is 0, its GWP is larger, which has a negative effect to global warming and climate change. PERFLUORO(2-METHYL-3-PENTANONE) can solve the two problems very well, that is the GWP and the ODP are very small, which is better than that of the halon fire extinguishing agent and other types of fluoroalkane halon alternatives (HFC-227ea, HFC-236fa) at this point.
Features
• EXCELLENT ENVIRONMENTAL PROFILE
• LOW TOXICITY
• EFFICIENT FIRE EXTINGUISHANT
• NONCORROSIVE
• IMMERSION COOLING
Immersion Cooling - Heat Transfer Applications
TMC-1230 is a chemically identical replacement for Novec™ 649 with specific properties suitable for heat transfer applications where non-flammability and environmental concerns are important.
Application Examples
• Electronics Cooling (Single or Dual Phase) • Organic Rankine Cycle
• Computer/Data Center Cooling • Diesel Engines
• Power Electronics such as IGBTs or inverters • Generators
• Geothermal Applications • Solar Applications
• Transformers and other equipment (SF6 replacement)
Properties
Property |
Unit |
Value |
Molecular weight |
_ |
316.04 |
Boiling point at 1013bar |
°C |
49.2 |
Freezing point |
°C |
-108.0 |
Critical temperature |
°C |
168.7 |
Critical pressure |
bar |
18.65 |
Critical densityk |
g/m3 |
639.1 |
Heat of vaporization at boiling point |
kj/kg |
88.0 |
Liquid Viscosity @25°C |
cp |
0.524 |
Solubility of water in NY5112 @21°C |
wt% |
<0.001 |
Specific heat, liquid@25°C |
kj/kg °C |
1.013 |
Liquid density |
g/ml |
1.60 |
Vapor density |
g /ml |
0.0136 |
Vapor pressure (25°C) |
bar |
0.404 |
Dielectric strength |
|
~60kv |
Purity |
|
99.9% min |
Relative Density (Water = 1) |
|
1.6 |
Odor |
|
Low odor |
Appearance |
|
Colorless transparent liquid |
Applications
Fire Suppression
Chemical Identity |
TMC-1230 is described as a chemically identical replacement for NovecTM 1230. This suggests that it has a similar chemical composition, which is effective at suppressing fires. |
Clean Agent Fire Protection |
Like Novec™ 1230, TMC-1230 is touted as a clean agent fire protection system. Clean agents are designed to extinguish fires without leaving behind harmful residues, making them suitable for protecting sensitive environments like data centers, museums, or places with valuable electronic equipment and documents. |
Rapid Fire Suppression |
TMC-1230 is claimed to extinguish fires in seconds, which is significantly faster than traditional water-based fire suppression systems. Rapid fire suppression can help minimize damage and prevent the spread of fires more effectively. |
Waterless Solution |
TMC-1230 is categorized as a waterless fire suppression solution. This means it doesn’t rely on water to extinguish fires, avoiding potential water damage to sensitive equipment or materials. |
Residue-Free |
One of the advantages of clean agent fire suppression systems is that they leave no residue after extinguishing a fire. This is crucial for protecting irreplaceable items like paper documents and electronics, as there is no cleanup or damage caused by residues. |
- Stored as a liquid and discharged as a gas
- Appropriate for Class A, B and C fire hazards
- Provides the highest margin of safety for human occupancy of any clean agent solution under the NFPA 2001 standard
Immersion Cooling - Heat Transfer Applications
TMC-1230 is a chemically identical replacement for Novec™ 649 with specific properties suitable for heat transfer applications where non-flammability and environmental concerns are important.
Application Examples
- Electronics Cooling (Single or Dual Phase) Organic Rankine Cycle
- Computer/Data Center Cooling Diesel Engines
- Power Electronics such as IGBTs or inverters Generators
- Geothermal Applications Solar Applications
- Transformers and other equipment (SF6 replacement)
Properties of TMC-1230 vs. 3MTM NovecTM 1230, 649, FK-5-1-12
Property |
3M™ Novec™ 1230, 649 |
TMC-1230 |
CAS # |
756-13-8 |
756-13-8 |
Boiling Point |
120 F°/ 49°C |
120°F / 49°C |
Pour Point |
-162°F / -108°C |
-162°F / -108°C |
Specific Gravity |
1.60 g/mL @ 25°C |
1.60 g/mL @ 25°C |
Vapor Pressure |
41kPa / 308 mmHg @ 25°C |
41kPa / 308 mmHg @ 25°C |
Critical Temperature |
336°F / 169°C |
336°F / 169°C |
Critical Pressure |
1.88mPA |
1.88mPA |
Pour Point |
-164°F / -108°C |
-164°F / -108°C |
Viscosity |
0.64cPs @ 25°C |
0.64cPs @ 25°C |
Specific Heat |
1103 J/kg-K@ 25°C |
1103 J/kg-K@ 25°C |
Latent Heat of Vaporization @ Boil Point |
88-kJ/kg |
88-kJ/kg |
Dielectric Constant |
1.8 @ 1kHz |
1.8 @ 1kHz |
Dielectric Strength |
48kV |
48kV |
Flash Point |
None |
None |
Materials Compatibility
Experiments show that TMC-1230 PERFLUORO(2-METHYL-3-PENTANONE) with other materials, such as rubber, metal, has good compatibility, and little impact on a variety of materials used. Though PERFLUORO(2-METHYL-3- PENTANONE) with metal contact 10 days under 48 °C, no fade or damage trace is found.
Environmental Properties
Compare to the Environmental condition of Perfluoro(2-methyl-3-pentanone) and Halon and part of the other products.
|
Perfluoro(2-methyl-3-pentanone) |
Halon 1301 |
Halon 1211 |
HFC-227ea |
HFC-236fa |
Chemical Formulas |
C3F5(O)CF(CF3)2 |
CF3Br |
CF2ClBr |
CF3CHFCF3 |
CF3CH2CF3 |
ALT (Year) |
0.014 |
65 |
11 |
33 |
220 |
GWP |
1 |
6900 |
1300 |
3500 |
9400 |
ODP |
0 |
10 |
4 |
0 |
0 |
Fire Extinguishing Concentration
PERFLUORO(2-METHYL-3-PENTANONE) has excellent fire performance, and its fire extinguishing concentration for class A is only 3.5%, its fire extinguishing concentration for class B is only 4.5% which is the closest to the halon, and it is far less than other fluoroalkane halon substitute. It can save A, B, C fires, non-conductive, immediate gasification after the injection, and no residue.
The extinguishing concentration of PERFLUORO(2-METHYL-3-PENTANONE) and halon 1301 and part of fluorine alkane halon substitute.
|
TMC-1230 |
Halon 1301 |
HFC-227ea |
CO2 |
Extinguishing Concentration (%) |
4-6 |
5 |
7.5-8.7 |
30-75 |
Health & Safety
The toxicity of PERFLUORO(2-METHYL-3-PENTANONE) is very low, and the extinguishing concentration of PERFLUORO(2-METHYL-3-PENTANONE) is much lower than its NOAEL, so the PERFLUORO(2-METHYL-3-PENTANONE)
has a high safety. The fire extinguishing agent has been registered by the USE.P.A.T.S.C.A.
The extinguishing concentration of PERFLUORO(2-METHYL-3-PENTANONE) and Halon and part of fluoroalkane halon substitute
|
Perfluoro(2-methyl-3-pentanone) |
Halon 1301 |
HFC-227ea |
HFC-236fa |
Extinguishing Concentration (%) |
4 |
5 |
7 |
15 |
NOAEL (%) |
10 |
5 |
9 |
10 |
Note: the NOAEL: invisible harm concentration
It’s shown in the table that the NOAEL PERFLUORO(2-METHYL-3-PENTANONE) approximately twice the extinguishing concentration, the safety margin is bigger; And slightly above its NOAEL of HFC-227ea fire extinguishing concentration, the safety margin is small; Halon 1301 NOAEL and extinguishing concentration is very close, no safety margin; HFC-36fa NOAEL is less than its extinguishing concentration, there is a danger to people. Therefore, PERFLUORO(2- METHYL-3-PENTANONE) extinguishing agent in extinguishing efficiency at the same time, more suitable for the place of someone.
[Custom Product Tab]
Product Datasheet |
For Safety Datasheet (SDS), please contact us! |
TMC-1230 PERFLUORO(2-METHYL-3-PENTANONE) has an excellent environmental profile. It doesn’t have damage to the ozone layer, and the ODP is 0, the GWP is 1, the ALT is 0.014 year. Although the ODP of fluoroalkane halon substitute products is 0, its GWP is larger, which has a negative effect to global warming and climate change. PERFLUORO(2-METHYL-3-PENTANONE) can solve the two problems very well, that is the GWP and the ODP are very small, which is better than that of the halon fire extinguishing agent and other types of fluoroalkane halon alternatives (HFC-227ea, HFC-236fa) at this point.
Features
• EXCELLENT ENVIRONMENTAL PROFILE
• LOW TOXICITY
• EFFICIENT FIRE EXTINGUISHANT
• NONCORROSIVE
• IMMERSION COOLING
Immersion Cooling - Heat Transfer Applications
TMC-1230 is a chemically identical replacement for Novec™ 649 with specific properties suitable for heat transfer applications where non-flammability and environmental concerns are important.
Application Examples
• Electronics Cooling (Single or Dual Phase) • Organic Rankine Cycle
• Computer/Data Center Cooling • Diesel Engines
• Power Electronics such as IGBTs or inverters • Generators
• Geothermal Applications • Solar Applications
• Transformers and other equipment (SF6 replacement)
Properties
Property |
Unit |
Value |
Molecular weight |
_ |
316.04 |
Boiling point at 1013bar |
°C |
49.2 |
Freezing point |
°C |
-108.0 |
Critical temperature |
°C |
168.7 |
Critical pressure |
bar |
18.65 |
Critical densityk |
g/m3 |
639.1 |
Heat of vaporization at boiling point |
kj/kg |
88.0 |
Liquid Viscosity @25°C |
cp |
0.524 |
Solubility of water in NY5112 @21°C |
wt% |
<0.001 |
Specific heat, liquid@25°C |
kj/kg °C |
1.013 |
Liquid density |
g/ml |
1.60 |
Vapor density |
g /ml |
0.0136 |
Vapor pressure (25°C) |
bar |
0.404 |
Dielectric strength |
|
~60kv |
Purity |
|
99.9% min |
Relative Density (Water = 1) |
|
1.6 |
Odor |
|
Low odor |
Appearance |
|
Colorless transparent liquid |
Applications
Fire Suppression
Chemical Identity |
TMC-1230 is described as a chemically identical replacement for NovecTM 1230. This suggests that it has a similar chemical composition, which is effective at suppressing fires. |
Clean Agent Fire Protection |
Like Novec™ 1230, TMC-1230 is touted as a clean agent fire protection system. Clean agents are designed to extinguish fires without leaving behind harmful residues, making them suitable for protecting sensitive environments like data centers, museums, or places with valuable electronic equipment and documents. |
Rapid Fire Suppression |
TMC-1230 is claimed to extinguish fires in seconds, which is significantly faster than traditional water-based fire suppression systems. Rapid fire suppression can help minimize damage and prevent the spread of fires more effectively. |
Waterless Solution |
TMC-1230 is categorized as a waterless fire suppression solution. This means it doesn’t rely on water to extinguish fires, avoiding potential water damage to sensitive equipment or materials. |
Residue-Free |
One of the advantages of clean agent fire suppression systems is that they leave no residue after extinguishing a fire. This is crucial for protecting irreplaceable items like paper documents and electronics, as there is no cleanup or damage caused by residues. |
- Stored as a liquid and discharged as a gas
- Appropriate for Class A, B and C fire hazards
- Provides the highest margin of safety for human occupancy of any clean agent solution under the NFPA 2001 standard
Immersion Cooling - Heat Transfer Applications
TMC-1230 is a chemically identical replacement for Novec™ 649 with specific properties suitable for heat transfer applications where non-flammability and environmental concerns are important.
Application Examples
- Electronics Cooling (Single or Dual Phase) Organic Rankine Cycle
- Computer/Data Center Cooling Diesel Engines
- Power Electronics such as IGBTs or inverters Generators
- Geothermal Applications Solar Applications
- Transformers and other equipment (SF6 replacement)
Properties of TMC-1230 vs. 3MTM NovecTM 1230, 649, FK-5-1-12
Property |
3M™ Novec™ 1230, 649 |
TMC-1230 |
CAS # |
756-13-8 |
756-13-8 |
Boiling Point |
120 F°/ 49°C |
120°F / 49°C |
Pour Point |
-162°F / -108°C |
-162°F / -108°C |
Specific Gravity |
1.60 g/mL @ 25°C |
1.60 g/mL @ 25°C |
Vapor Pressure |
41kPa / 308 mmHg @ 25°C |
41kPa / 308 mmHg @ 25°C |
Critical Temperature |
336°F / 169°C |
336°F / 169°C |
Critical Pressure |
1.88mPA |
1.88mPA |
Pour Point |
-164°F / -108°C |
-164°F / -108°C |
Viscosity |
0.64cPs @ 25°C |
0.64cPs @ 25°C |
Specific Heat |
1103 J/kg-K@ 25°C |
1103 J/kg-K@ 25°C |
Latent Heat of Vaporization @ Boil Point |
88-kJ/kg |
88-kJ/kg |
Dielectric Constant |
1.8 @ 1kHz |
1.8 @ 1kHz |
Dielectric Strength |
48kV |
48kV |
Flash Point |
None |
None |
Materials Compatibility
Experiments show that TMC-1230 PERFLUORO(2-METHYL-3-PENTANONE) with other materials, such as rubber, metal, has good compatibility, and little impact on a variety of materials used. Though PERFLUORO(2-METHYL-3- PENTANONE) with metal contact 10 days under 48 °C, no fade or damage trace is found.
Environmental Properties
Compare to the Environmental condition of Perfluoro(2-methyl-3-pentanone) and Halon and part of the other products.
|
Perfluoro(2-methyl-3-pentanone) |
Halon 1301 |
Halon 1211 |
HFC-227ea |
HFC-236fa |
Chemical Formulas |
C3F5(O)CF(CF3)2 |
CF3Br |
CF2ClBr |
CF3CHFCF3 |
CF3CH2CF3 |
ALT (Year) |
0.014 |
65 |
11 |
33 |
220 |
GWP |
1 |
6900 |
1300 |
3500 |
9400 |
ODP |
0 |
10 |
4 |
0 |
0 |
Fire Extinguishing Concentration
PERFLUORO(2-METHYL-3-PENTANONE) has excellent fire performance, and its fire extinguishing concentration for class A is only 3.5%, its fire extinguishing concentration for class B is only 4.5% which is the closest to the halon, and it is far less than other fluoroalkane halon substitute. It can save A, B, C fires, non-conductive, immediate gasification after the injection, and no residue.
The extinguishing concentration of PERFLUORO(2-METHYL-3-PENTANONE) and halon 1301 and part of fluorine alkane halon substitute.
|
TMC-1230 |
Halon 1301 |
HFC-227ea |
CO2 |
Extinguishing Concentration (%) |
4-6 |
5 |
7.5-8.7 |
30-75 |
Health & Safety
The toxicity of PERFLUORO(2-METHYL-3-PENTANONE) is very low, and the extinguishing concentration of PERFLUORO(2-METHYL-3-PENTANONE) is much lower than its NOAEL, so the PERFLUORO(2-METHYL-3-PENTANONE)
has a high safety. The fire extinguishing agent has been registered by the USE.P.A.T.S.C.A.
The extinguishing concentration of PERFLUORO(2-METHYL-3-PENTANONE) and Halon and part of fluoroalkane halon substitute
|
Perfluoro(2-methyl-3-pentanone) |
Halon 1301 |
HFC-227ea |
HFC-236fa |
Extinguishing Concentration (%) |
4 |
5 |
7 |
15 |
NOAEL (%) |
10 |
5 |
9 |
10 |
Note: the NOAEL: invisible harm concentration
It’s shown in the table that the NOAEL PERFLUORO(2-METHYL-3-PENTANONE) approximately twice the extinguishing concentration, the safety margin is bigger; And slightly above its NOAEL of HFC-227ea fire extinguishing concentration, the safety margin is small; Halon 1301 NOAEL and extinguishing concentration is very close, no safety margin; HFC-36fa NOAEL is less than its extinguishing concentration, there is a danger to people. Therefore, PERFLUORO(2- METHYL-3-PENTANONE) extinguishing agent in extinguishing efficiency at the same time, more suitable for the place of someone.
[Custom Product Tab]
Product Datasheet |
For Safety Datasheet (SDS), please contact us! |

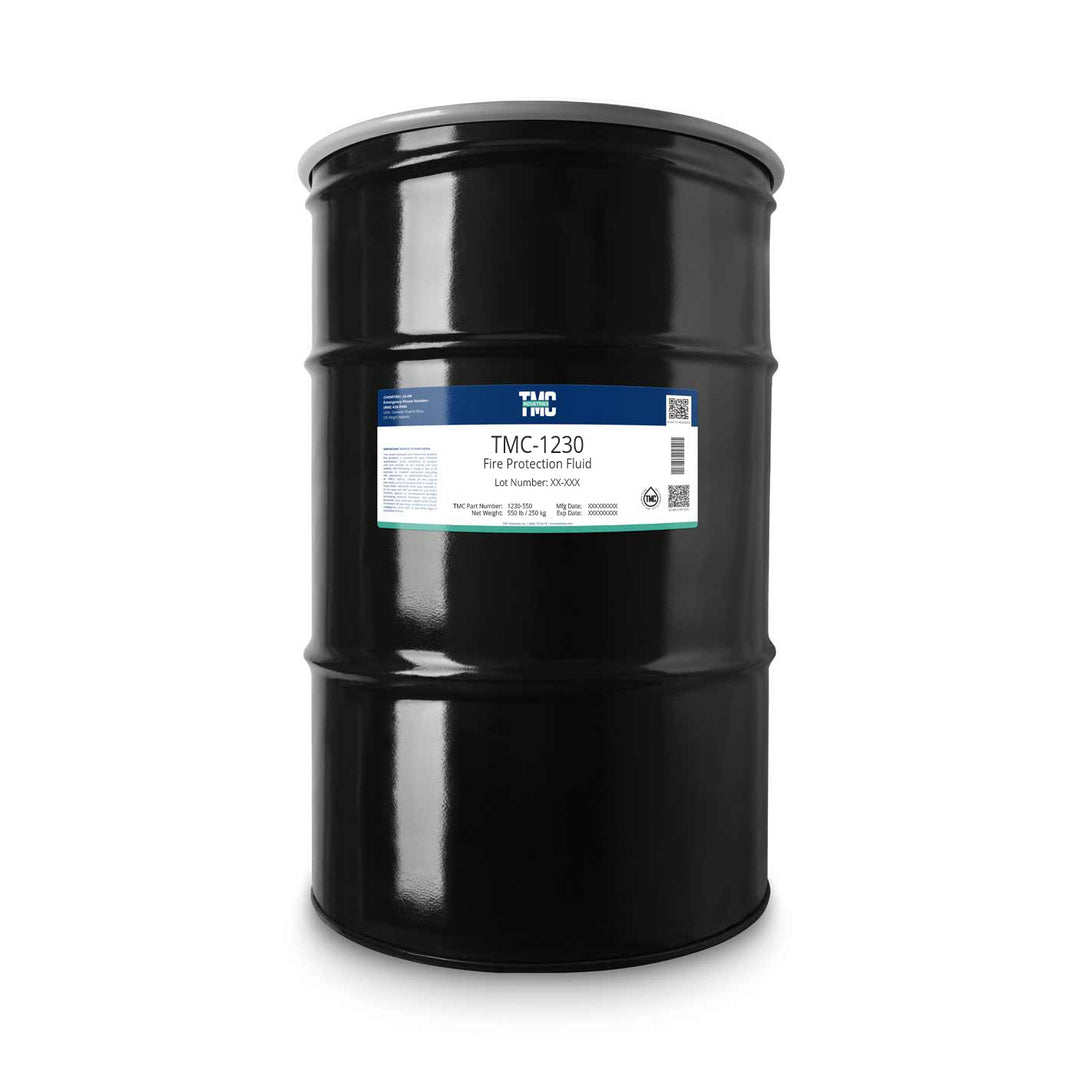

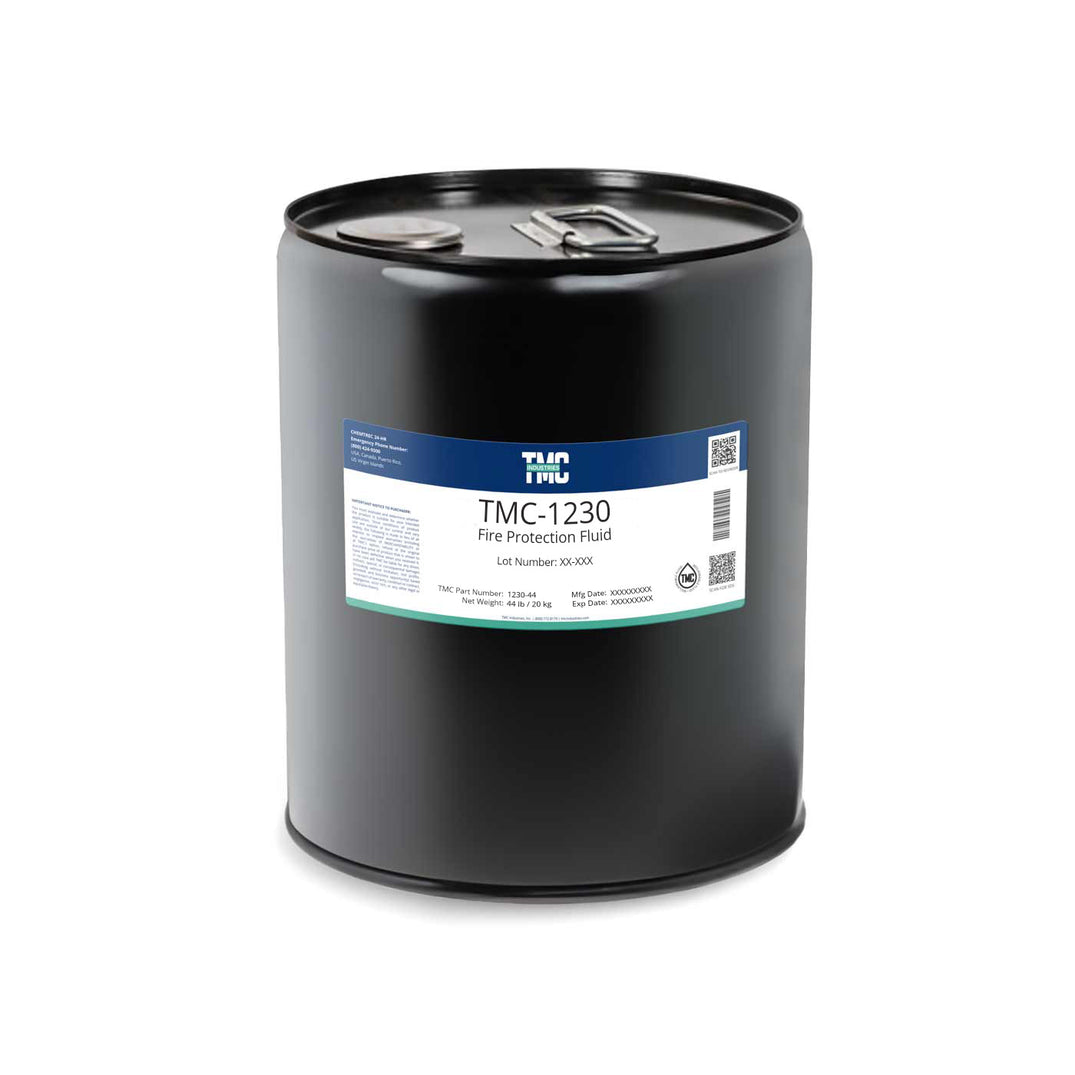

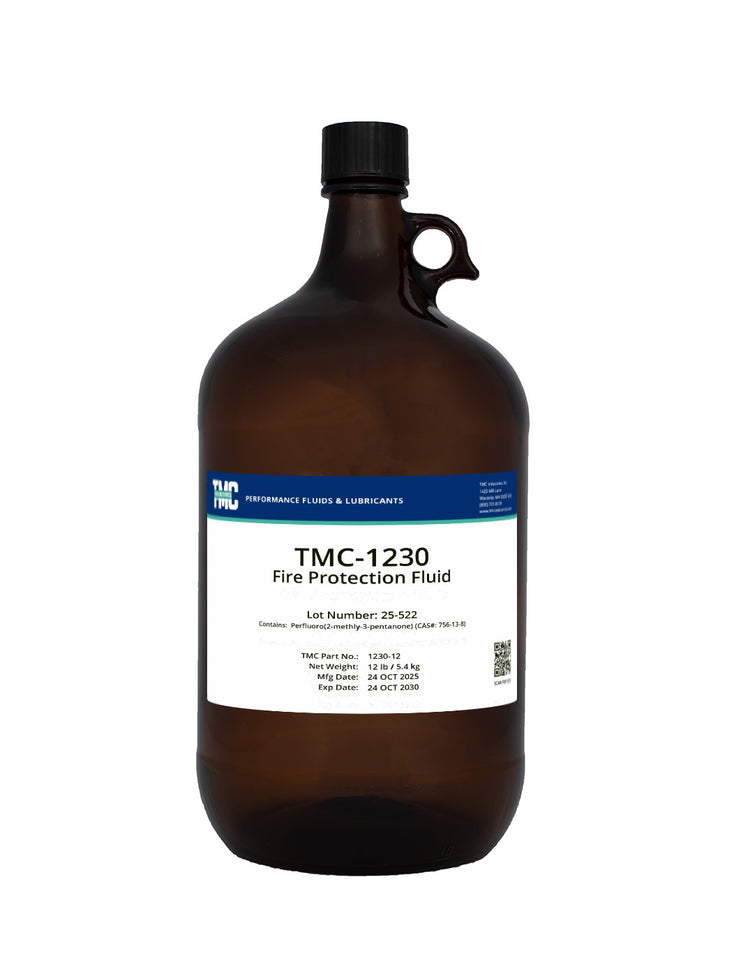

TMC-1230 (Direct Replacement for 3M Novec® 1230 & Novec™ 649)
